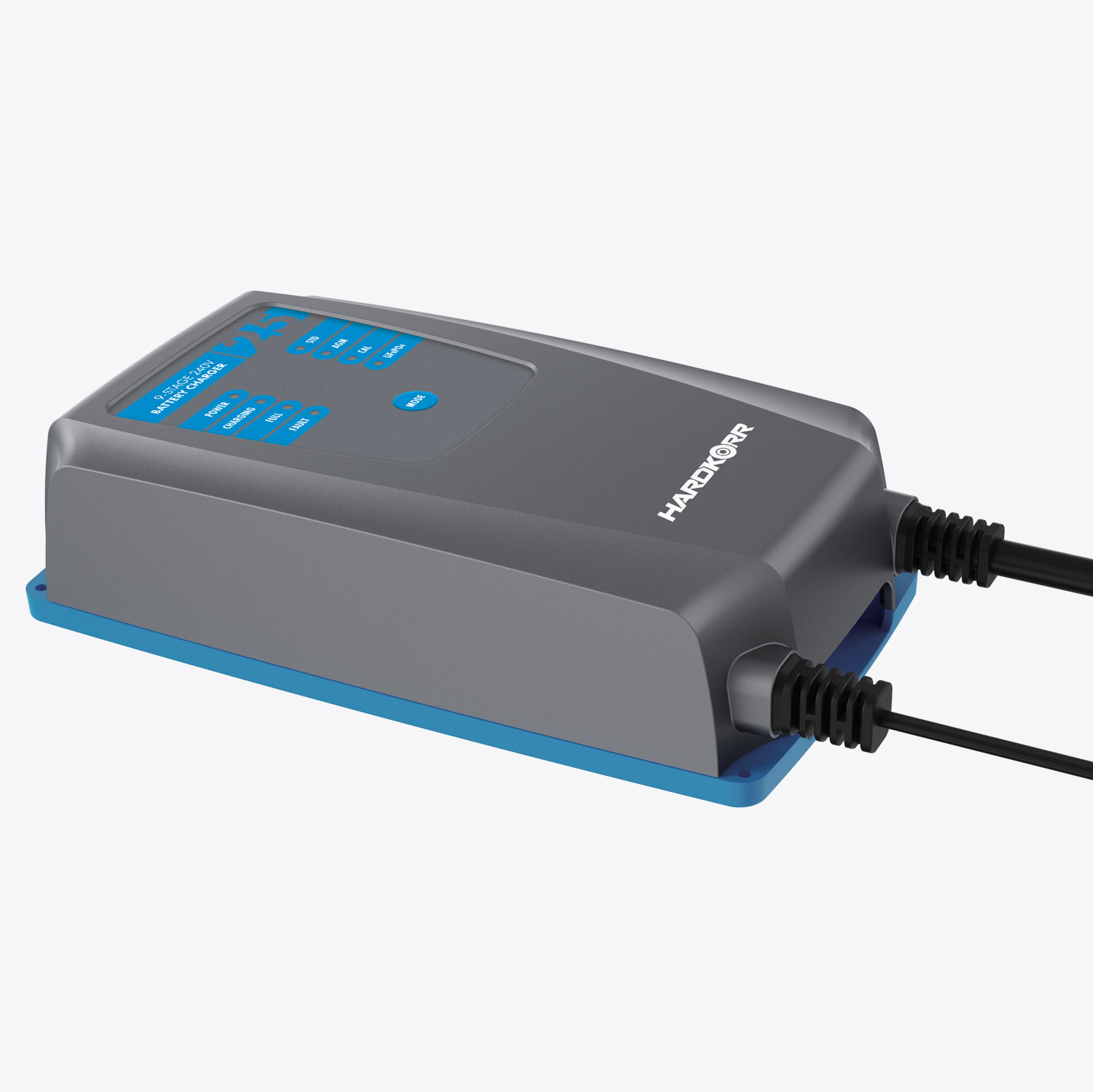

Charge your batteries from home
Perfect for charging your batteries before or after your trips from home, or from a powered site at a caravan park, our AC Chargers are one of the easiest ways to top up your batteries.
Feeding power into your batteries at up to 25A per hour, the chargers will quickly get your batteries back to health using our battery-specific 9-stage charging algorithm.
The charger is compatible with a range of battery chemistries including LiFePO4. Allowing you to quickly wake up a lithium battery that has been over-discharged and put into protection mode, the chargers have an automatic BMS wake-up function to help get your batteries back in action.
The charger has cables coming from the base of the unit and comes with four pre-drilled mounting holes at each corner, allowing the unit to very easily be mounted on the wall of your garage or workshop. It also comes with a ring terminal adaptor and an alligator clip attachment making it easy to use – just set the battery type and connect it to your battery.
Efficient Charging

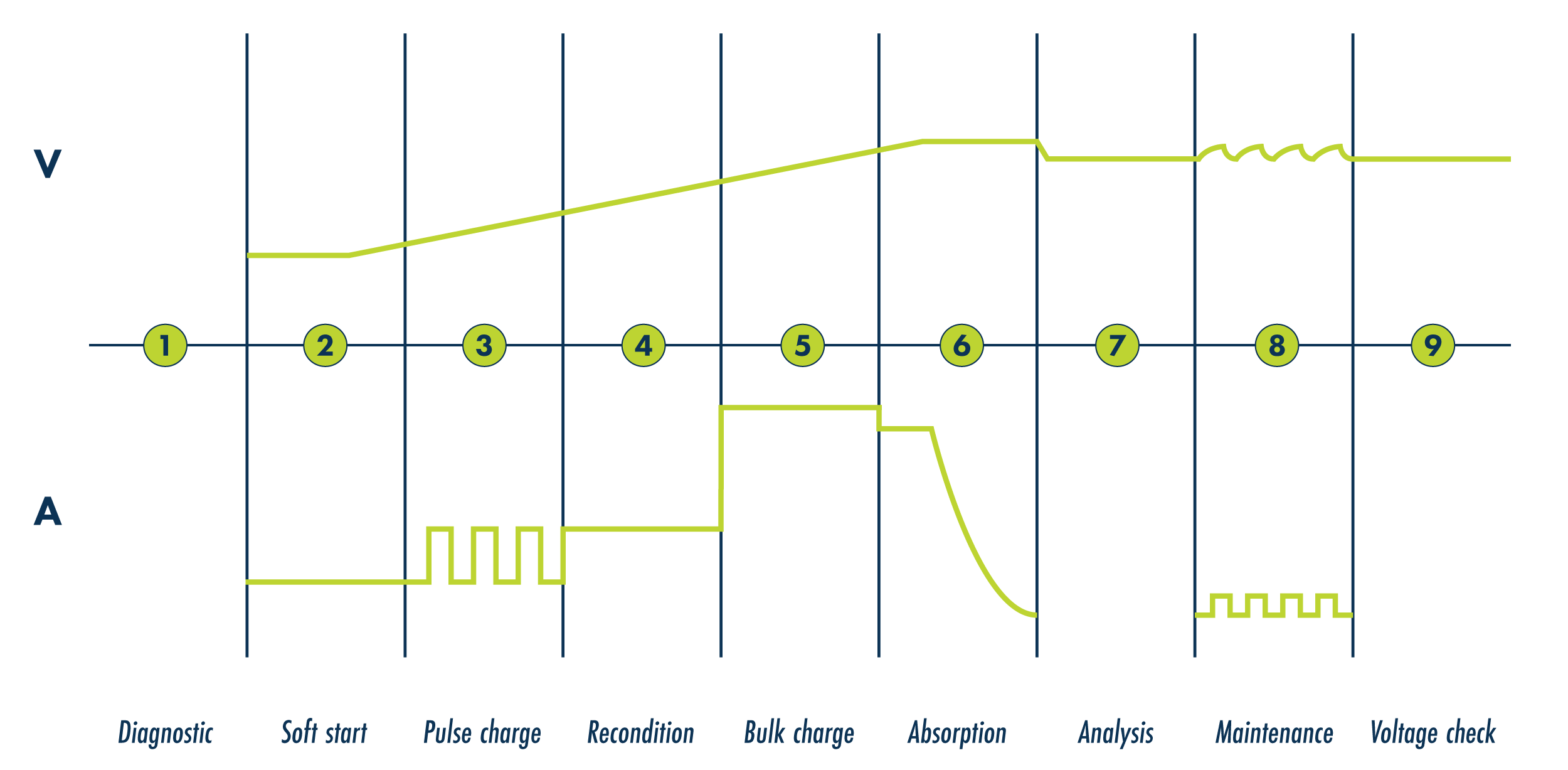

Our chargers come with an automatic 9-stage charging algorithm, designed to charge your batteries quickly and in the healthiest manner possible.
The chargers will proceed through a diagnostic, and soft start setting to help ease the battery into a charge cycle before kicking into the main bulk charge stage.
The chargers will then progress into an absorption and analysis charge followed by a maintenance setting, designed to nurture your battery through the charge cycle.
*NOTE: lithium batteries do not go through the pulse/desulphation stage
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 2-year Australian warranty and a 30-day money back guarantee.
Specifications
| Rated Input/Output | 220-240V – 12V/25A |
|---|---|
| Compatible batteries | 12V SLA, AGM, Cal, LiFePO4 |
| Efficiency | >90% |
| Inbuilt Protections | Over-charge, over-temp, short circuit, reverse polarity protections |
| Dimensions | 241mm (L) x 133mm (W) x 65mm (H) |
| Certifications | AS/NZS 60335:1 :2020+A1 :2021, AS/NZS 60335.2.29:2017+A1:2020, AS/NZS 3112:2017, AS/NZS 3100:2017 |
Pack Contents
| 1x | 25A battery charger |
|---|---|
| 1x | Easy connect plug to alligator clips adaptor (30A fused) |
| 1x | Easy connect plug to M8 ring terminals adaptor (30A fused) |
